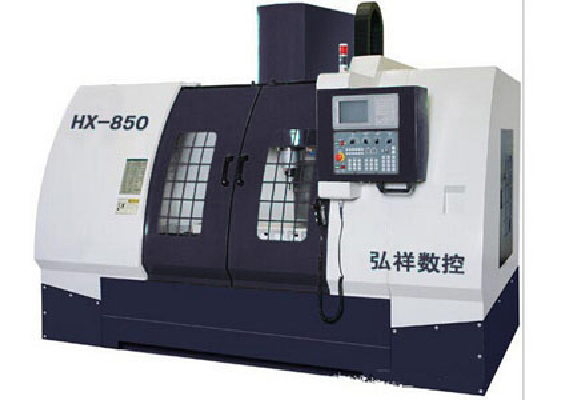

vertical cnc milling machine

vertical cnc milling machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1 Set per Month
  • Port: Any China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-03-19
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  3000*2480*2300
  • Place of Origin:  ShanDong
  • Brand Name:  hongxiang
  • Model Number:  VM850
  • Weight: 5000.000 kg
ITEM UNIT HX-850 main configuration
stroke X stroke mm 800 TAIDA / ROYAL spindle
Y stroke mm 500 TAIDA / ROYAL spindle
Z stroke mm 550 XIEPIN boosting unclamping cylinder
distance from spindle to table surface mm 105-655 HIWIN / PMIi lead screw
table surface size of table surface(W*L) mm 1050*500  screw rod bearing
max.load weight of table kg 600 R+W Coupling
space between T grove mm 5-18*100 HERG lubricating oil pump
spindle rotation speed of spindle rmp 60-8000 Shanghai ZhenFei guide protection
taper hole of spindle BT 40 Taiwan SYNTEC system / Beijing KND system
spindle motor power kw 7.5 optional configuration
power of X、Y、Z motor kw 2.3-2.3-2.3 FANUC System
XYZ axis motor torque N/M 15-15-15 MITSUBISHI system
feed rate rapid feed XYZ axes m/min 15-15-15 Spindle oil cooler
machining feed speed rate m/min 10 11kw spindle motor
XYZ ball screw specifications 4008 Z axis travel
precision positioning accuracy XYZ axes mm 0.01 Chip conveyor
repeatability XYZ axes mm 0.005
dimension of overall dimension of machine mm 3000*2480*2300
machine weight of machine kg 5000
  • Size:  3000*2480*2300
  • Place of Origin:  ShanDong
  • Brand Name:  hongxiang
  • Model Number:  VM850
  • Weight: 5000.000 kg
