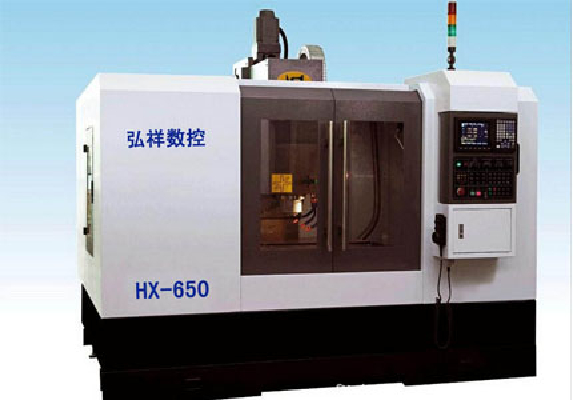

vertical cnc milling machine

vertical cnc milling machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 1 Set per Month
  • Port: Any China Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2010-03-19
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  2800*2400*2300
  • Place of Origin:  ShanDong
  • Brand Name:  hongxiang
  • Model Number:  VM650
  • Weight: 4500.000 kg
ITEM UNIT HX-650 main configuration
stroke X stroke mm 650 TAIDA / ROYAL spindle
Y stroke mm 400 TAIDA / ROYAL spindle
Z stroke mm 480 XIEPIN boosting unclamping cylinder
distance from spindle to table surface mm 80-560 HIWIN / PMIi lead screw
table surface size of table surface(W*L) mm 800*420  screw rod bearing
max.load weight of table kg 600 R+W Coupling
space between T grove mm 3-18*135 HERG lubricating oil pump
spindle rotation speed of spindle rmp 60-8000 Shanghai ZhenFei guide protection
taper hole of spindle BT 40 Taiwan SYNTEC system / Beijing KND system
spindle motor power kw 5.5 optional configuration
power of X、Y、Z motor kw 1.5-1.5-1.5 FANUC System
XYZ axis motor torque N/M 15-15-15 MITSUBISHI system
feed rate rapid feed XYZ axes m/min 15-15-15 Spindle oil cooler
machining feed speed rate m/min 10 7.5kw spindle motor
XYZ ball screw specifications 3206 Chip conveyor
precision positioning accuracy XYZ axes mm 0.01
repeatability XYZ axes mm 0.005
dimension of overall dimension of machine mm 2800*2400*2300
machine weight of machine kg 4500
  • Size:  2800*2400*2300
  • Place of Origin:  ShanDong
  • Brand Name:  hongxiang
  • Model Number:  VM650
  • Weight: 4500.000 kg
