Product Details
- Size: 2105*850*1200
- Place of Origin: ShanDong
- Brand Name: hongxiang

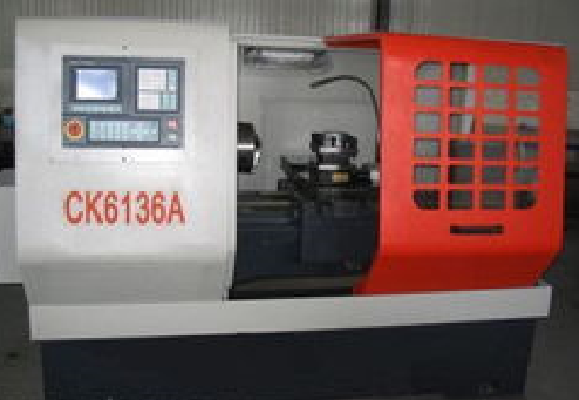

- Model Number: ck6136
- Weight: 1400.000 kg
| tems | project name（mm） | tachnical parameters |
| CK6136 | ||
| technical specifications | maximum swing over bed | Ф360 |
| maximum over carriage（mm） | Ф200 | |
| maximum machining length（mm） | 750/1000 | |
| main drive | main transmission form | second frequency control of motor speed |
| spindle speed step | second gea | |
| spindle speed form（r/min) | 80-2000 | |
| the spindle head form | C-60/D-6 | |
| the spindle taper hole diameter（mm） | Ф48 | |
| taper spindle hole front/diameter | MT5 | |
| chuck diameter（mm） | Ф200 | |
| main motor power（kw） | 5.5 | |
| the tailstock device | tailstock sleeve diameter（mm） | 60 |
| stockholm sleeve travel(mm) | 120 | |
| internal taper of tailstock sleeve | MT4 | |
| head device | stadard configuration | Vertical four-station electric tool post |
| choose special configuration | row tool | |
| repeated positioning accuracy | 0.005 |
- Size: 2105*850*1200
- Place of Origin: ShanDong
- Brand Name: hongxiang
- Model Number: ck6136
- Weight: 1400.000 kg
