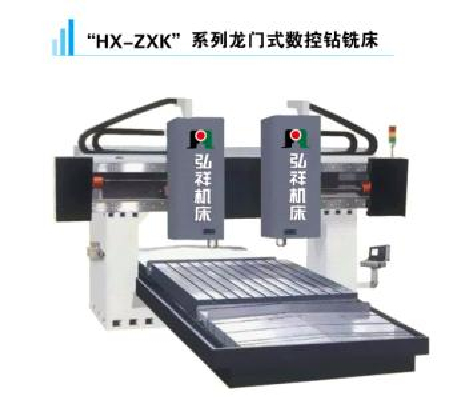

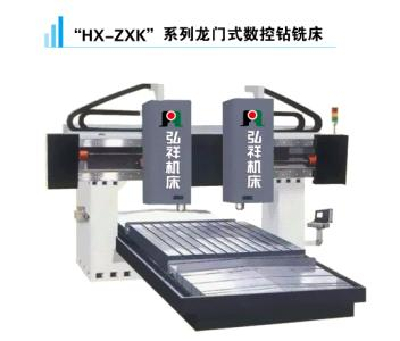

Product Details
- Size: 7600*7100*3600
- Place of Origin: ShanDong
- Brand Name: hongxiang
- Model Number: ZXK1230
- Weight: 16000.000 kg
| ITEM | UNIT | ZXK1230 | |||
| table | table size | mm | 1250× 3000 | ||
| gantry width | mm | 1820 | |||
| max loading | kg | 2000 | |||
| T-slot size × Number | mm×N | 22×9 | |||
| travel | X travel | mm | 3000 | ||
| Y travel | mm | 1250 | |||
| Z travel | mm | 400 | |||
| spindle nose to | Max | mm | 500 | ||
| table center | Min | mm | 100 | ||
| spindle | taper(7:24) | BT40 | |||
| speed range | r/min | 40-2500 | |||
| max output torque | N.m | 120 | 140 | ||
| max axial force | N | 10000 | |||
| motor power | kw | 9 | 11 | ||
| the biggest hole diameter | mm | Ф32 | |||
| max tool diameter | mm | － | |||
| cast speed | mm | M24 | |||
| carbon steel | mm | M20 | |||
| feed | cutting speed | mm/min | 1-4000 | ||
| rapid speed | X axis | m/min | 15 | ||
| Y axis | m/min | 15 | |||
| Z axis | m/min | 12 | |||
| atc | max tool length | mm | 300 | ||
| tool shank | give expulsion-typely | ||||
| tool magazine capacity | N | 10 | |||
| positioning | product standard | X axis | mm | 0.052 | |
| accuracy | JB/T8771.4-1998 | Y axis | mm | 0.032 | |
| Z axis | mm | 0.022 | |||
| pepeatability | X axis | mm | 0.025 | ||
| positioning | Y axis | mm | 0.018 | ||
| Z axis | mm | 0.012 | |||
| power requirement | KVA | 42 | 52 | ||
| machine weight | kg | 16000 | |||
| controller | SIEMNS828D | FANUC Oi | |||
