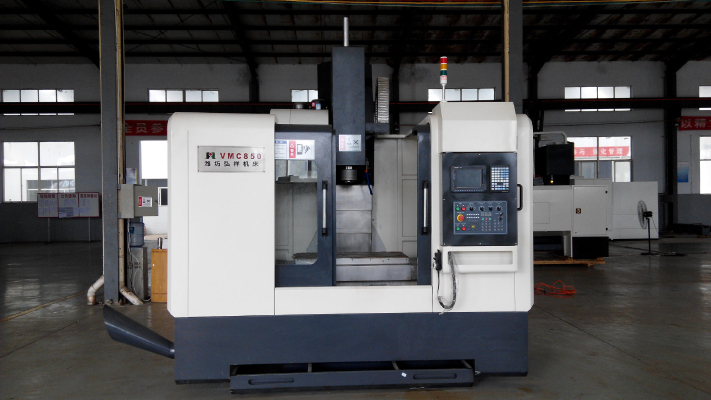

Product Details
- Size: 3000*2480*2300
- Place of Origin: ShanDong
- Brand Name: hongxiang
- Model Number: VMC850
- Weight: 6500.000 kg
| ITEM | UNIT | HXNC-850 | main configuration | |
| stroke | X stroke | mm | 800 | TAIDA / ROYAL spindle |
| Y stroke | mm | 500 | TAIDA / ROYAL spindle | |
| Z stroke | mm | 550 | XIEPIN boosting unclamping cylinder | |
| distance from spindle to table surface | mm | 110-810 | HIWIN / PMIi lead screw | |
| table surface | size of table surface(W*L) | mm | 1050*500 | screw rod bearing |
| max.load weight of table | kg | 600 | R+W Coupling | |
| space between T grove | mm | 5-18*100 | HERG lubricating oil pump | |
| spindle | rotation speed of spindle | rmp | 60-8000 | Shanghai ZhenFei guide protection |
| taper hole of spindle | BT | 40 | Taiwan SYNTEC system / Beijing KND system | |
| spindle motor power | kw | 7.5 | optional configuration | |
| power of X、Y、Z motor | kw | 1.5-2.3-2.3 | FANUC System | |
| XYZ axis motor torque | N/M | 10-15-15 | MITSUBISHI system | |
| feed rate | rapid feed XYZ axes | m/min | 15-15-15 | Spindle oil cooler |
| machining feed speed rate | m/min | 10 | 11kw spindle motor | |
| XYZ ball screw specifications | 4010 | hat knife library | ||
| precision | positioning accuracy XYZ axes | mm | 0.01 | the disc knife library |
| repeatability XYZ axes | mm | 0.005 | Chip conveyor | |
| dimension of | overall dimension of machine | mm | 3000*2480*2300 | |
| machine | weight of machine | kg | 5000 | |
| autmatic tool | Number of the cutting tool | pcs | 24 | |
| change system | The cutting tool maximum length | mm | 300 | |
| Tool change time | sec | 2 |
- Size: 3000*2480*2300
- Place of Origin: ShanDong
- Brand Name: hongxiang
- Model Number: VMC850
- Weight: 6500.000 kg
